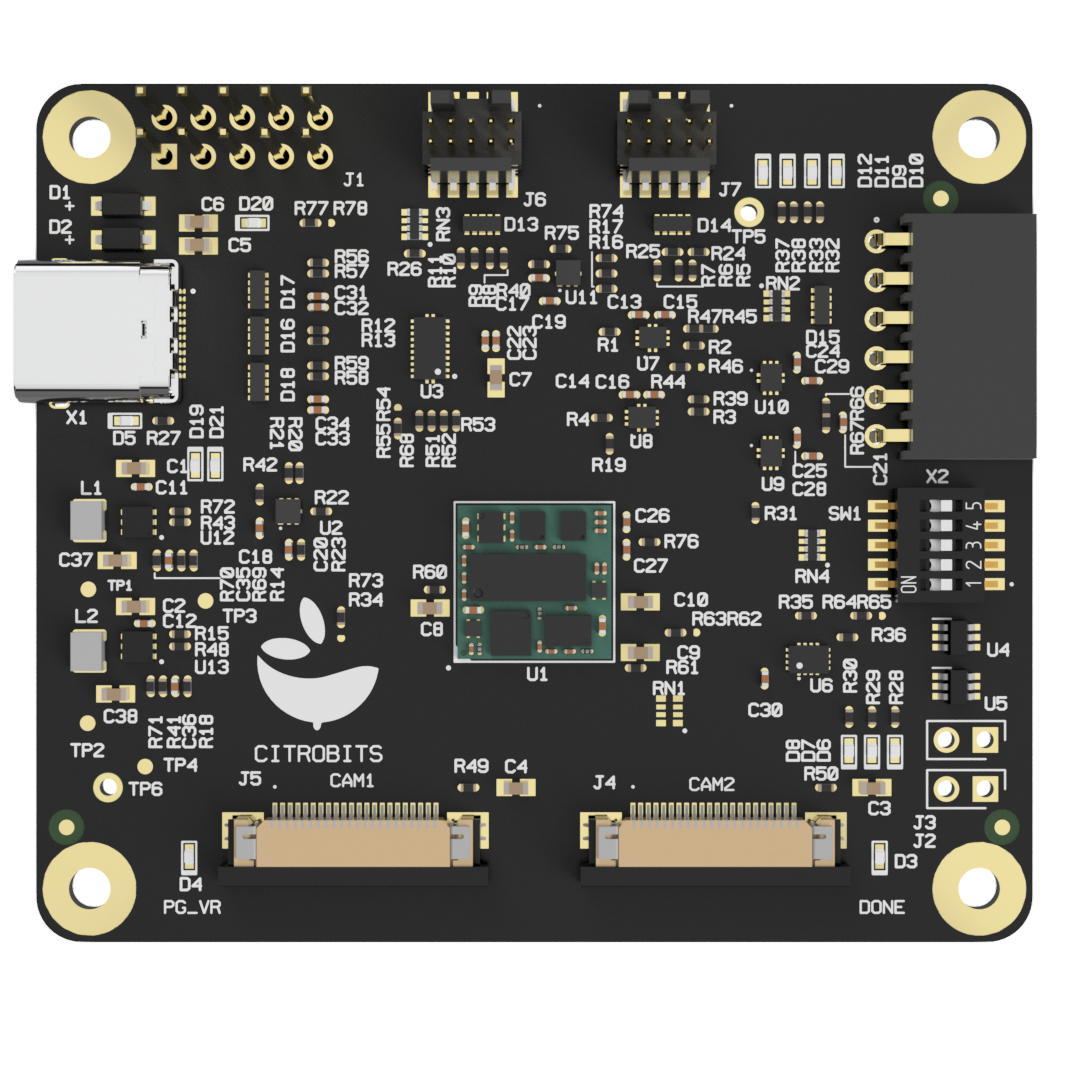

LVU01 – USB BRIDGE BOARD

Overview

USB evaluation board allows for easy connection to ARM or x86 Platforms. It extend the capabilities of an SoC offering a video-to-USB 3.2 bridge for two cameras or displays. Additionally, it carries 256Mb of integrated memory. It can be used as a frame buffer or for any other ISP/user application.

Specification

Form factor:	65 x 56 (mm) Raspberry Pi Model B compatible HAT
Connectivity:	22x Pin CSI – Raspberry Pi Zero pinout 2x Camera/Display RX/TX Ports USB Type-C 6x Pin Digilent’s PMOD
Video:	2x 2-Lane Soft D-PHY CSI/DSI Ports (up to 1.0Gbps/Lane)
USB:	USB 2.0 (480Mbps) USB 3.2 Gen 1 (5Gbps)
Memory:	8-Bit Frame Buffer: 2x128MBit
GPIO:	HAT-compatible 10-pin IO header
Power:	5V DC via GPIO header or USB connector
Environment:	Operating temperature 0–60°C (-40…+85°C*)

[sliderTatsuSlider1]

Get all specifications!

Download

Applications

Video Aggregation. Merge multiple video streams in a single USB interface
Video grabber from image sensor to USB
Video Rotation
Advanced ISP
Sensor Fusion
Image Overlay
ML Ready
