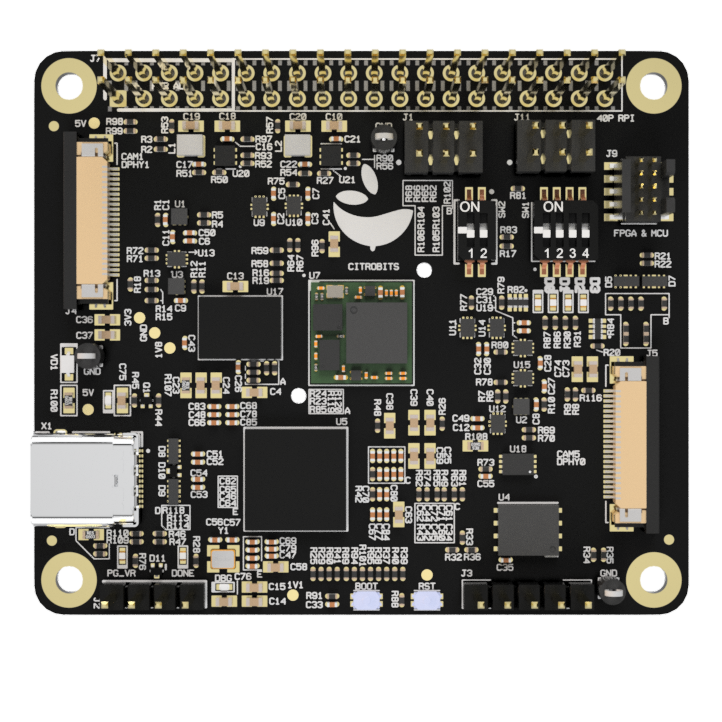

LVM03 – USB 10G BRIDGE BOARD

Overview

The LVM03 Evaluation Board is a high-performance development platform designed for USB 10 Gbps applications based on the Infineon FX10 USB controller. Featuring SuperSpeed USB connectivity, high-bandwidth data transfer, flexible expansion interfaces, and support for advanced imaging and data acquisition systems, the LVM03 enables rapid prototyping and evaluation of next-generation USB devices.

It provides developers with a powerful and efficient platform for accelerating product development and reducing time to market.

Specification

Form factor:	65 x 56 (mm) Raspberry Pi Model B compatible HAT
Connectivity:	22x Pin CSI – Raspberry Pi Zero pinout
Video:	2x 4-Lane Hard D-PHY CSI Ports (up to 2.5Gbps/Lane)
USB:	10 Gbps USB Connectivity
Memory:	256Mb HyperRAM Memory
GPIO:	HAT-compatible 40-pin IO header
Peripherals:	Build in clock generator / integrated Flash
Power:	5V DC via GPIO header
Environment:	Operating temperature 0–60°C (-40…+85°C on request)

[sliderTatsuSlider1]

Get all specifications!

Download

Applications

USB Video Capture
Connect CSI-2 or SLVS image sensors directly to a PC through a USB 3.2 interface. Accelerate camera evaluation and software development without custom hardware.
Multi-Camera Aggregation

Combine multiple camera streams into a single USB connection. Simplify host integration for stereo vision and multi-sensor applications.
Video Processing & ISP

Implement image enhancement, color conversion, scaling, and other FPGA-based processing functions. Process video in real time before it reaches the host system.
Sensor-to-PC Evaluation

Quickly connect and evaluate new image sensors using standard USB interfaces. Reduce development time with a flexible FPGA-based platform.
Machine Vision & AI

Stream high-speed video to Raspberry Pi, NVIDIA Jetson, or PC-based AI systems. Prototype vision and edge-AI applications with minimal setup.
