Multi Sensor CSI2 Virtual Channel Aggregation

MIPI CSI2 Sensors

CSI-2 MIPI Virtual Channels offer a dynamic solution for aggregating multiple video streams efficiently. By leveraging virtual channels within the MIPI CSI-2 protocol, disparate video sources can be seamlessly integrated into a single interface, optimizing bandwidth utilization and system performance. This technology enables simultaneous transmission of multiple video streams, each assigned to its dedicated virtual channel, ensuring robustness and flexibility in handling diverse video inputs. Through intelligent allocation and management of virtual channels, CSI-2 MIPI empowers devices to handle complex video processing tasks with ease, facilitating applications ranging from multi-camera surveillance systems to immersive multimedia experiences.

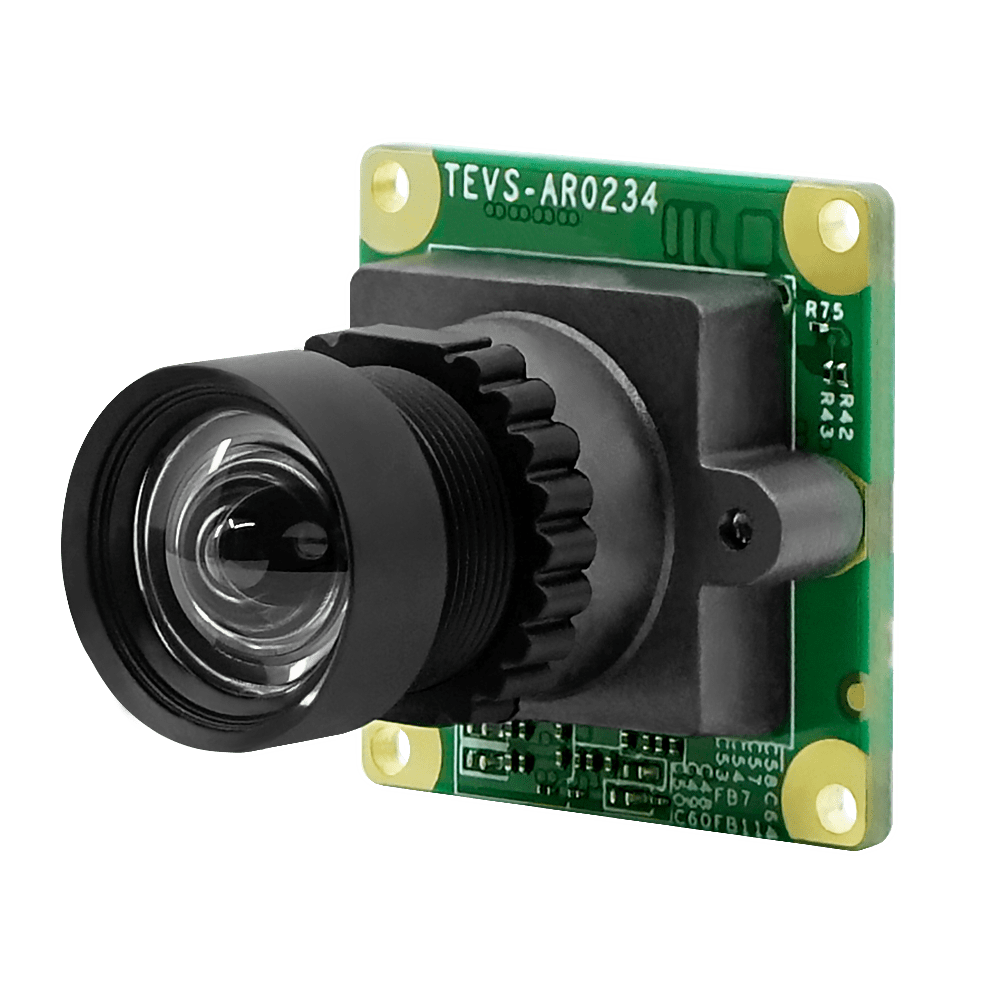

CSI2 MIPI Sensor

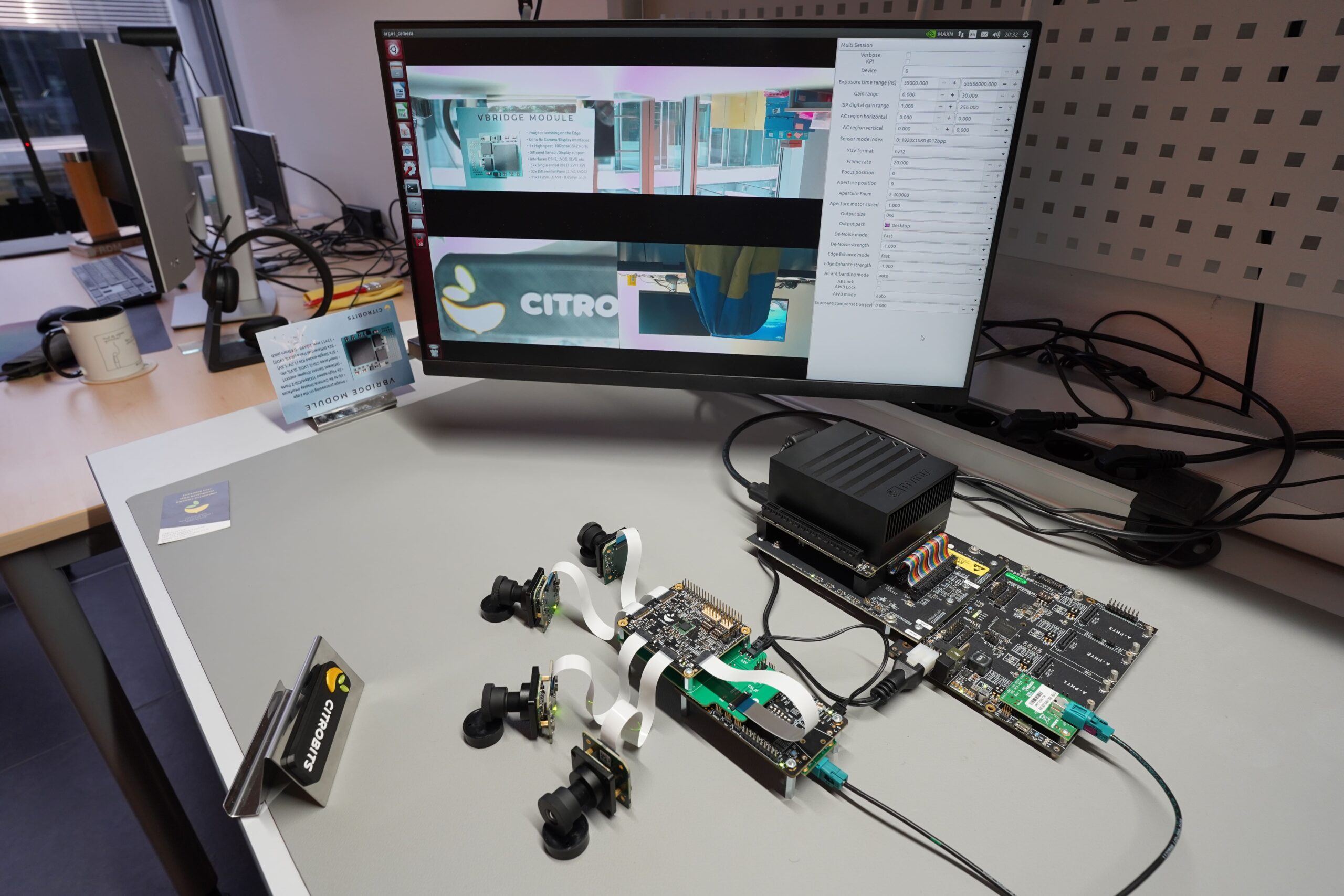

Multi Sensor CSI2 Virtual Channel Aggregation Demo Setup

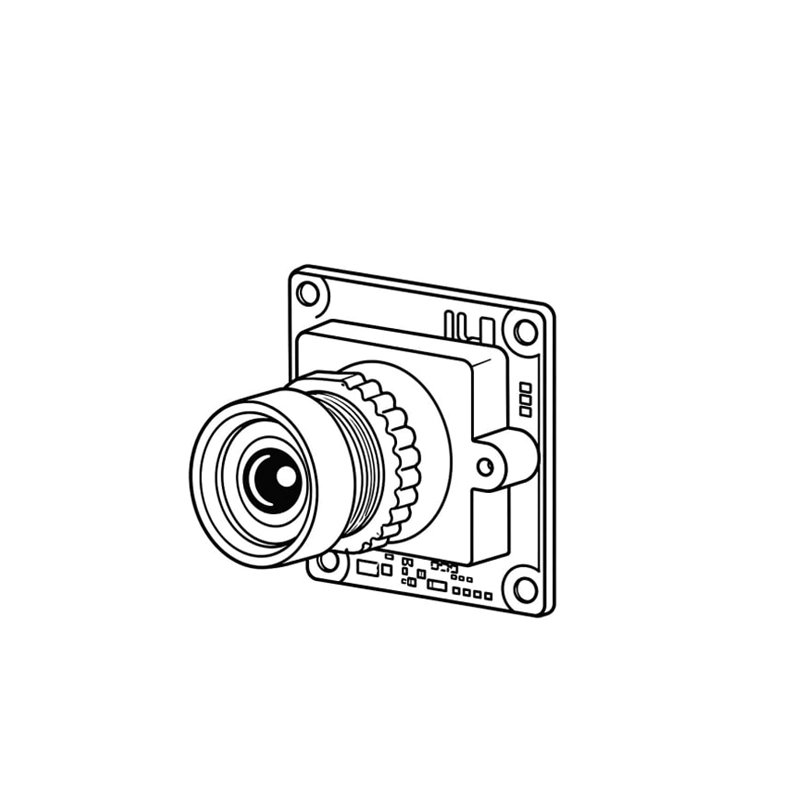

Multi MIPI CSI2 Sensors for virtual channel aggregation

FPGA Video Bridge Module

Introducing our cutting-edge FPGA module designed to implement a robust virtual channel aggregation solution for handling multiple video streams with unparalleled efficiency. Leveraging the power and versatility of Field-Programmable Gate Arrays (FPGAs), our module seamlessly integrates CSI-2 MIPI Virtual Channels, offering benefits such as optimized bandwidth utilization, low latency, and scalability. With synchronized capture, real-time processing capabilities, and resource-efficient design, our FPGA module ensures seamless integration into diverse applications including surveillance systems, multimedia processing, and industrial automation. Experience enhanced performance, flexibility, and reliability with our FPGA-based virtual channel aggregation solution.

CBM 110 USB Bridge / Aggregator Module render
  • Ready to deploy solution. pre-programmed devices with minimal physical footprint.

  • Reduce power consumption running image processing directly on FPGA fabric.

  • Deterministic data processing offloading computations from external visualization devices.

  • Built-in update mechanism for on-the-field upgrades and firmware updates.

  • AI-ready for automatic image processing and quality enhancement.

  • Minimal size and weight for handheld devices.

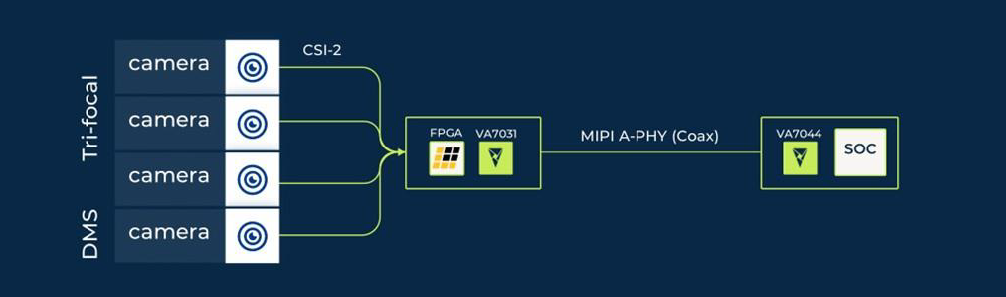

Block Diagram

Block diagram virtual channel aggregation Citrobits

Key Benefits

  • Bandwidth Optimization: Efficiently utilizes available bandwidth by aggregating multiple video streams into a single interface, maximizing data throughput.
  • Flexibility: FPGA-based implementation allows for customization and adaptation to various video stream formats and resolutions, catering to diverse application requirements.
  • Low Latency: Minimizes latency in processing and transmitting video streams, crucial for real-time applications such as surveillance and video conferencing.
  • Scalability: Easily scales to accommodate additional video streams or higher resolutions by adjusting FPGA configurations or adding hardware resources.
  • Resource Efficiency: Utilizes FPGA resources effectively, optimizing power consumption and hardware utilization for cost-effective solutions.
  • Synchronization: Ensures synchronized capture and transmission of multiple video streams, crucial for applications requiring coherent data from multiple sources.
  • Robustness: Provides robust handling of video streams, mitigating errors and packet loss through error correction mechanisms inherent in the CSI-2 MIPI protocol.
  • Interoperability: Facilitates integration with existing systems and standards, ensuring compatibility with a wide range of devices and platforms.
  • Real-Time Processing: Enables on-the-fly processing and manipulation of video streams within the FPGA, allowing for tasks such as image enhancement, object detection, or compression.
  • Future-Proofing: Offers a versatile and adaptable solution that can evolve with changing application needs and emerging video standards, ensuring long-term viability and compatibility.
