EVA NEYEM01 BRIDGE BOARD

Overview

This evaluation board, powered by Citrobits’ CBM100 FPGA Module, seamlessly integrates the  ams OSRAM NanEyeM and its micro-camera derivatives into custom system architectures, providing a powerful and flexible bridge for innovative vision applications.

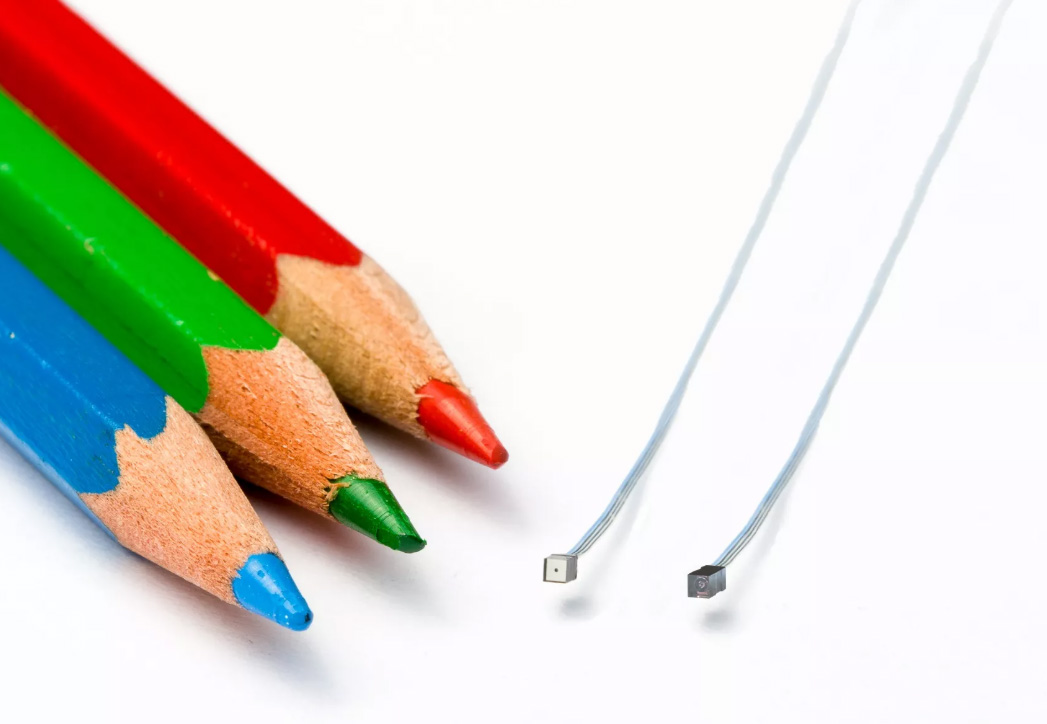

ams OSRAM NanEye sensors smaller than pencils

Thanks to its compact size of just 1 mm², the NanEyeM image sensor used in this evaluation board is ideal for vision applications with strict size constraints. The camera head transmits signals through long cables, making it perfect for medical endoscopic applications where high SNR is essential. It is also well-suited for industrial inspection borescopes and eye-tracking applications.

The sensor supports a high frame rate of approximately 49 fps, enabling SNR enhancement and a smooth, low-latency display. Additionally, the frame rate can be reduced to as low as 4 fps to allow extended exposure times and lower power consumption.

The Sensor supports cables of 1 to 2m long by using proprietary protocol. With the EVA-NEYEM01, you can seamlessly connect the sensor to most readily available platforms, ensuring maximum compatibility and ease of integration.

Designed for maximum flexibility, this evaluation board bridges camera input data from the sensor to either MIPI CSI-2 or parallel output. It supports CSI-2 one, two, or four-lane configurations, delivering high-speed performance that can be over 1.5Gbps per lane. The parallel output features 10 data bits, Clock, V-Sync, H-Sync, and Data Enable, with compatibility for both 3.3V and 1.8V systems.

For ams OSRAM cameras with integrated lighting, a low-noise LED boost regulator powers two LEDs in series with up to 50mA, ensuring optimal illumination.

Engineered for seamless connectivity, the board features a 6-pin Molex 0527460671 and 22-pin FFC connectors with MIPI-pinout compatibility for Raspberry Pi. Power can be supplied through the connectors with 3.3V input.

Why Choose This Evaluation Board?

  • Accelerate Development – Save time with a plug-and-play design
  • Effortless Connectivity – Easily integrate with various system architectures
  • Versatile FPGA Compatibility – Supports a wide range of FPGA platforms

Specification

Dimensions: 50 x 45 mm
Connectivity: 1/2/4-Lane Hard D-PHY CSI/DSI Ports (>1.5Gbps/Lane)
10 bit parallel bus
Peripherals: Built-in power supply
Built-in LED driver
Power Supply: 3.3V
Environment: Operating temperature
Commercial 0-60°C
[sliderTatsuSlider1]
EVA-NEYEM01 Evaluation Board

Get all specifications!

Download
Block Diagram EVA NEYEM evaluation board

Applications

  • Healthcare: Medical endoscopy
  • Industrial: Pipeline inspection
  • AR/VR headset eye tracking
  • Video interface bridging
  • Video pre-processing
  • Video aggregation

Additional information about the Evaluation Board NEYEM01 on the ams OSRAM webpage
